Inline/Ceiling & Cabinet Fans
SMXDK

MODEL: SMXDK
Direct Drive Mixed Flow Fan

  • Rated up to 24,500 CFM
  • Static Pressure up to 6-1/2" w.g.
  • 10 sizes ranging from 9" to 30"
  • Effective Diameter Wheels
  • Continuously Welded
  • Epoxy Coated Steel Housing
  • For Indoor/Outdoor Use
  • AMCA Air and Sound Licensed
  • cULus 705 Listed
SMXDK-HT

MODEL: SMXDK-HT
Direct Drive Mixed Flow Fan

  • Rated up to 24,500 CFM
  • Static Pressure up to 6-1/2" w.g.
  • 10 sizes ranging from 9" to 30"
  • Effective Diameter Wheels
  • Continuously Welded
  • Epoxy Coated Steel Housing
  • For Indoor/Outdoor Use
  • AMCA Air and Sound Licensed
  • cULus 705 Listed
  • cULus 793 Listed for 500℉ (260℃) for 6 hours and 572℉ (300℃) for 2 hours.
SQB and SQD Models

MODEL: SQB/SQD/eSQD
Square In-line Centrifugal Fan
Sizes 6 to 42
150 to 24,500 CFM
Static Pressure to 3-1/2"
AMCA Seal for Air & Sound
UL Listing Available
Ecowatt® (eSQD Models Only)
SQB models sizes 7-24 are part of the S&P USA Ventilation Systems Quickship program and ship out in 3 days
SQD model sizes 6-15 are part of the S&P USA Ventilation Systems Quickship program, offering Next Day shipment from stock, as well as 3 day shipping options.

CFD Models

MODEL: CFD
Forward Curved Inline Duct Blowers
Sizes 7 to 15
200 to 5,800 CFM
Static Pressure to 2-1/2"
AMCA Seal for Air & Sound
cULus Listing Available
CTB Models

MODEL: CTB/CTBRHUL
Belt Drive Centrifugal Tubular Fan
Sizes 9 to 42
300 to 20,000 CFM
Static Pressure to 2-1/2"
AMCA Seal for Air & Sound
cULus 705 or 762 Listing Available

TDB Models

MODEL: TDB
Belt Drive Tubeaxial Fan
Sizes 12 to 60
900 to 75,490 CFM
Static Pressure to 1-1/2"
AMCA Seal for Air & Sound
cULus Listing Available
TDD Models

MODEL: TDD
Direct Drive Tubeaxial Fan
Sizes 12 to 48
800 to 39,000 CFM
Static Pressure to 1-1/4"
AMCA Seal for Air
cULus Listed
FF Models

MODEL: Losone Select (Formally FF/FFC)
Ceiling & Inline/Cabinet Ventilators
Sizes 100 to 700
50 to 722 CFM
Static Pressure to 1"
AMCA Seal for Air Performance
UL Listing Available

FF Models

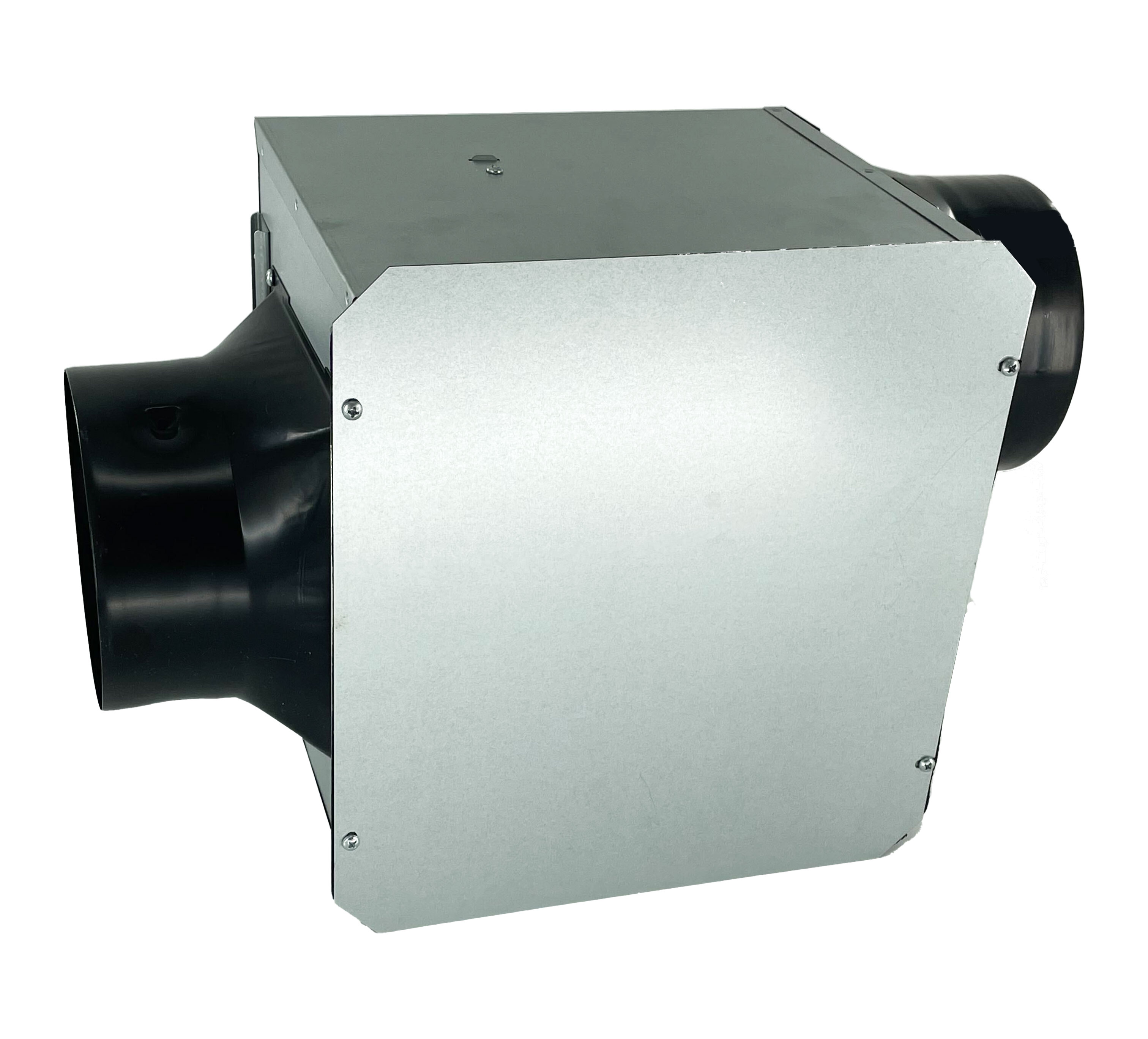

NEW MODEL: PCD-IL
Premium Choice Inline Fans
Set to approximate speeds of 300 CFM, 200 CFM, 150 CFM, 100 CFM. Equipped with knob for speed adjustment.
Optional dual-speed operation, allowing low-speed continuous use and high-speed activation via a switch (Switch not included).
Strong double-inlet centrifugal blower equipped with an energy-efficient EC motor (commonly referred to as DC)
6" Round duct connection.
Thermally protected motor.
